Patent Pending · Made in Traverse City, Michigan
The Gold Standard Model 60
Patent Pending
Combination Pipe & Bench Vise

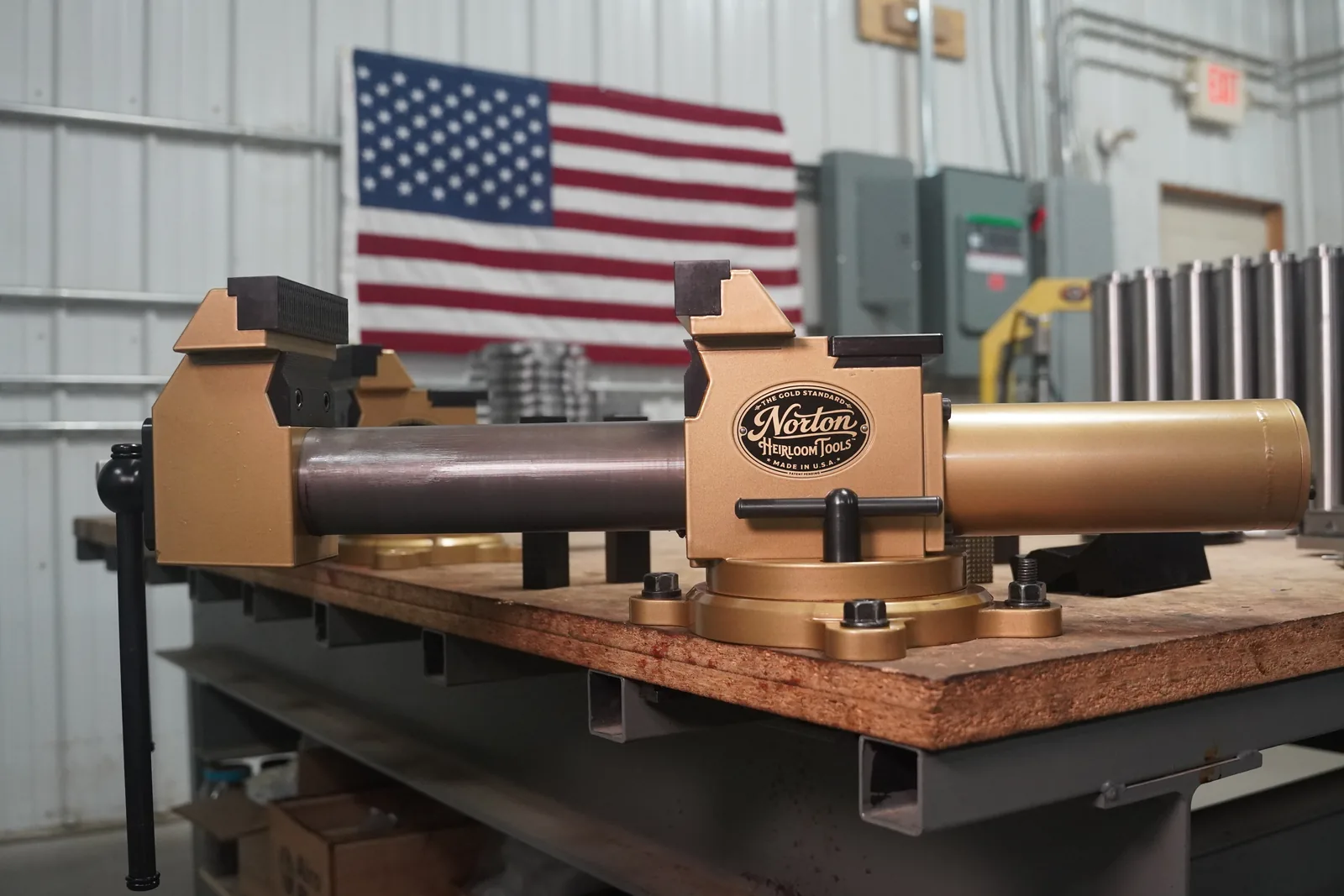

The Gold Standard Model 60 Combination Pipe and Bench Vise™
Over four times the material strength of a cast vise. Components are machined from high-strength, high-impact tool steels, fully heat treated to 250,000 PSI — where a cast vise sits at roughly 60,000 PSI.
Every surface is precision machined to close engineered tolerances, so the vise opens and closes with direct movement of the handle and zero backlash or play in the fully enclosed screw and nut assembly. It works easily anywhere in the 0 to 20,000 pound load range with normal hand pressure.
Built for the home shop, the production floor, or a service vehicle — made in Traverse City, Michigan with the care of a precision instrument.
- Jaw width6 in.
- Max jaw opening10 in.
- Throat depth3.8 in.
- Pipe capacity5/8 – 3 in. dia.
- Pipe gripping area3.75 in. long
- ConstructionSolid steel — no castings
- Jaw materialHardened tool steel, through-hardened, 1.375 in. thick
- Material strength250,000 PSI Cast vises are roughly 60,000 PSI
- Working load0 – 20,000 lb
- Swivel base360°, infinite positioning
- Open length32.625 in.
- Closed length22.7 in.
- Overall height9.4 in.
- Handle length12 in.

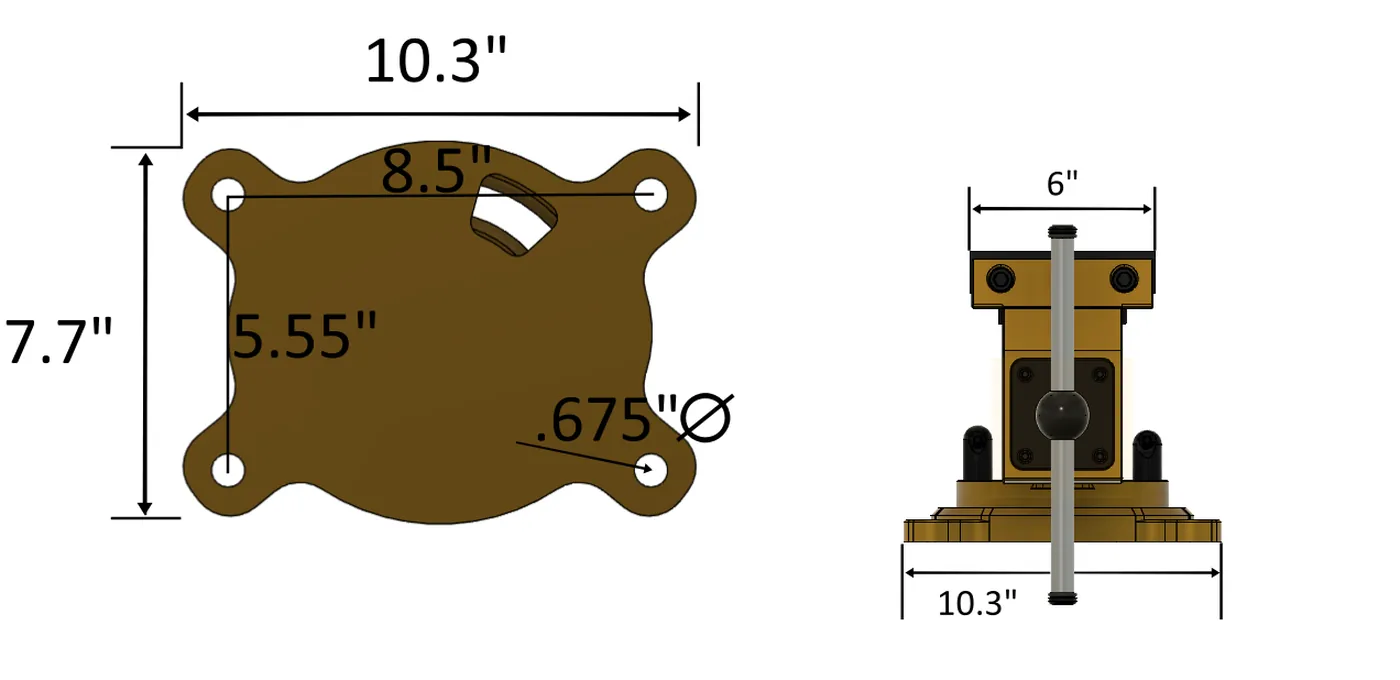

- Base plate10.3 × 7.7 in.
- Mounting pattern8.5 × 5.55 in., 0.675 in. dia. holes
- Built inTraverse City, Michigan, U.S.A.
$2,500.00Patent Pending · Fast UPS shipping in the lower 48
Pre-order. The current Model 60 production run is officially sold out. Orders placed now reserve a Model 60 from the next production run and will be fulfilled in the order received.
Expected shipping Beginning of October 2026
The full product price, applicable taxes and shipping are charged at checkout. Any “2–5 business days” shown during checkout refers only to UPS transit time after the completed vise leaves our facility. It does not mean the vise will ship within 2–5 days.
What comes on every Model 60

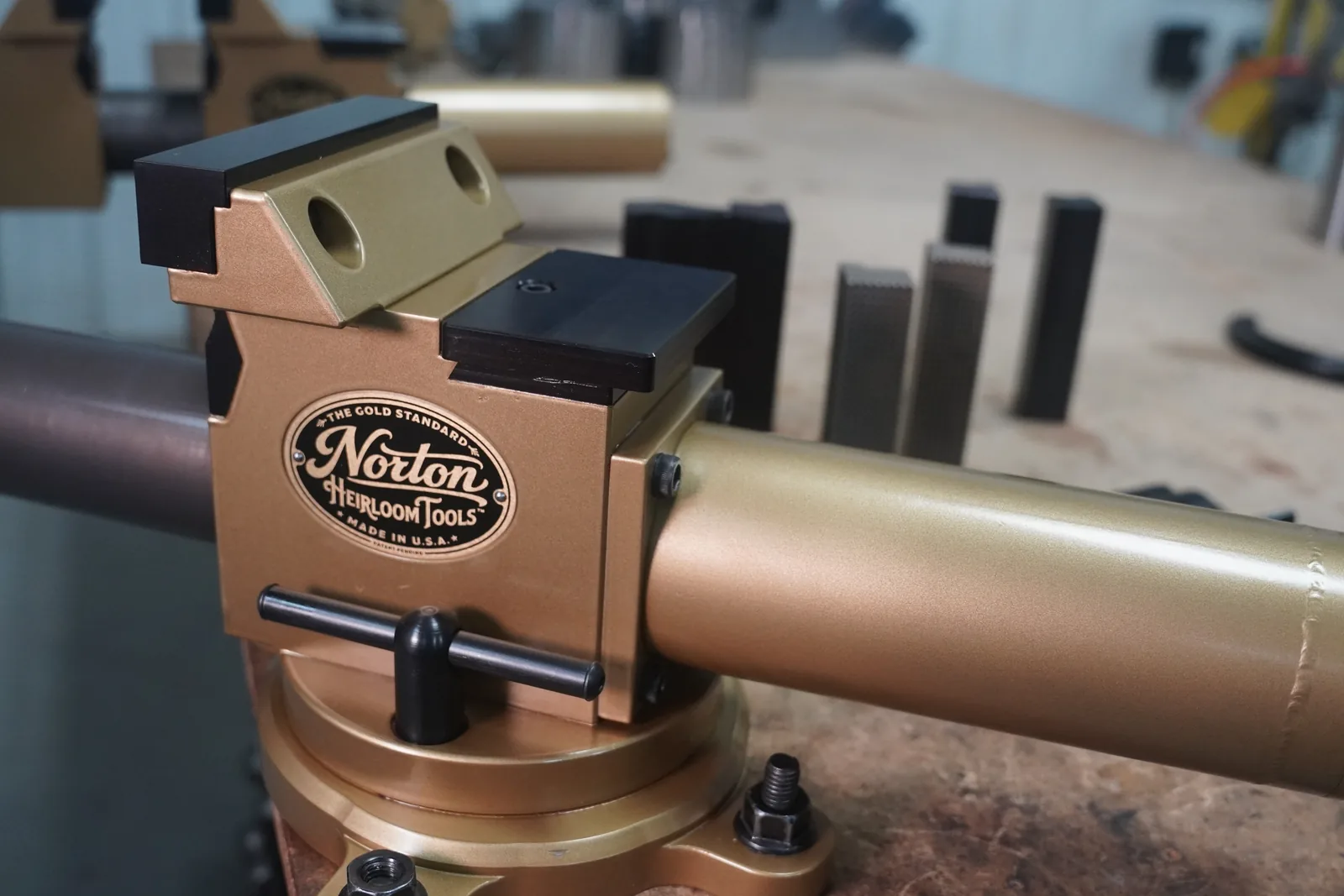

The Gold Standard Extreme Grip Jaws™
Six inch jaws included. High-impact, through-hardened tool steel, 1.375 inches thick, with no fasteners anywhere in the working area — 100% holding power across the full face. Jaw opening to 10 inches.
Extreme Grip Combination Pipe Jaws™
Included as standard. Holds pipe from 5/8 to 3 inches in diameter across a solid 3.75 inch gripping area, again with no fasteners in the working surfaces. Through-hardened tool steel.
Removable anvil
High-impact, through-hardened tool steel, and removable so it can be swapped for custom application anvils. More options coming soon.
Extreme Lock Swivel Base™
360 degrees of infinite positioning with no notches to fight. Every mating surface is fully machined to close tolerance, so the base locks hard and moves smoothly — no settling for the nearest detent.

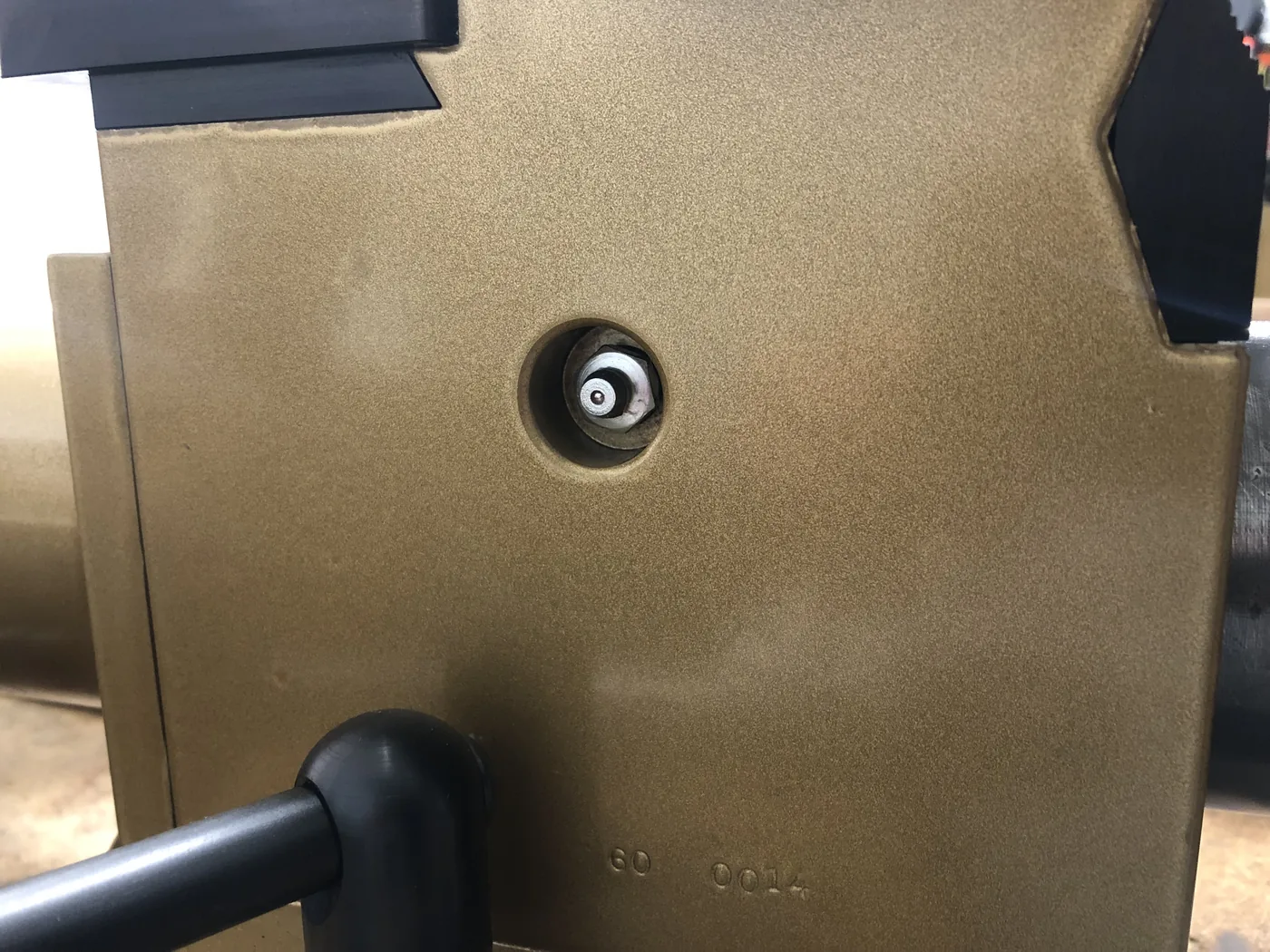

One zerk, and that is the service schedule
A single grease fitting lubricates the main body, the dynamic jaw tube and the swivel base. The heat-treated screw and nut assembly is completely sealed from the environment and lubricated here at the shop, so it needs no regular service at all.
Built to be serviced
Every part is available, and the shop can tell you exactly how your vise was built. Call with your model and we will match it. See the Model 60 mounting and maintenance instructions.

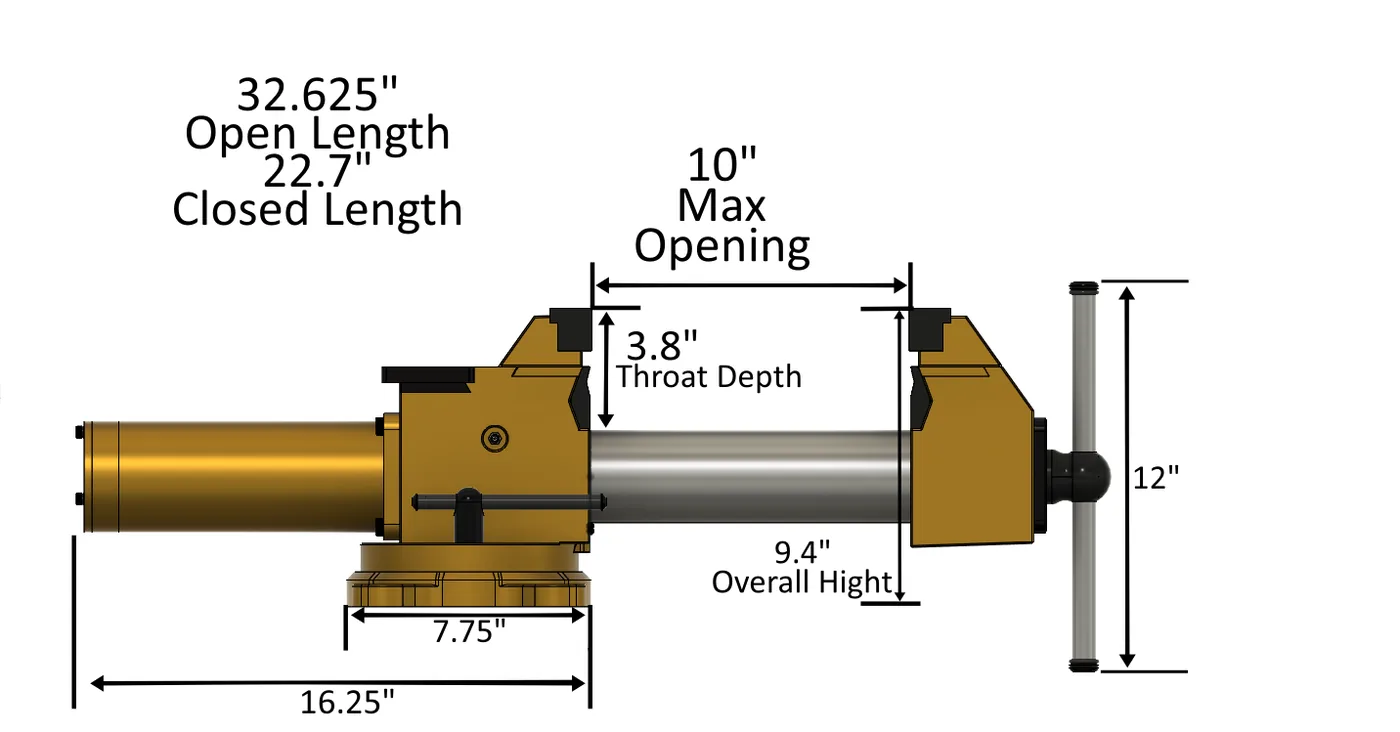

Dimensions & mounting
Everything you need to plan the bench before it arrives.
Ready to order?
Every vise is tested and ready for use, so let’s confirm the details with you directly. Tell us where it is going and we will take care of the rest.
